Superpar

$77.00 Incl GST
SKU: AD-7023

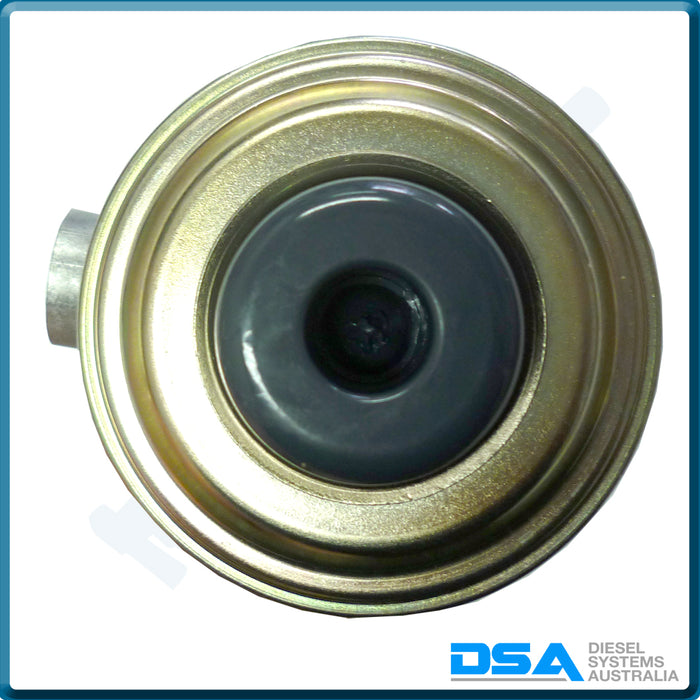

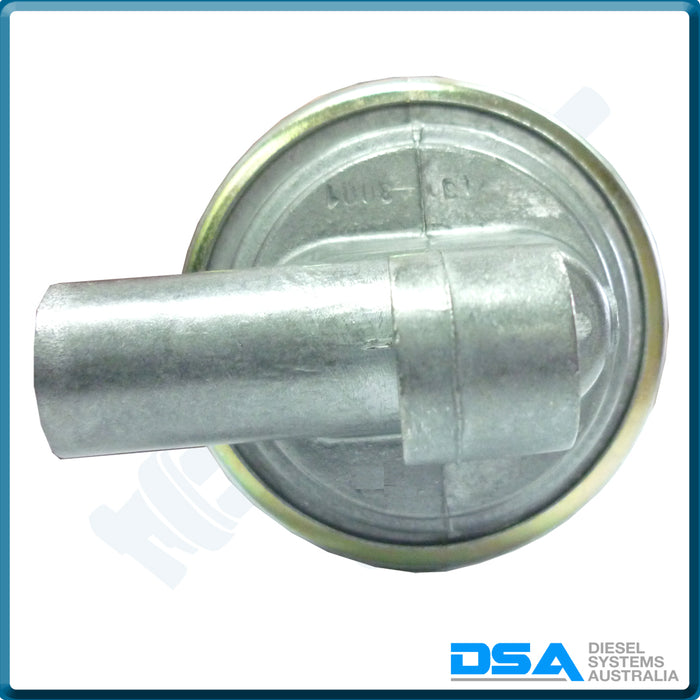

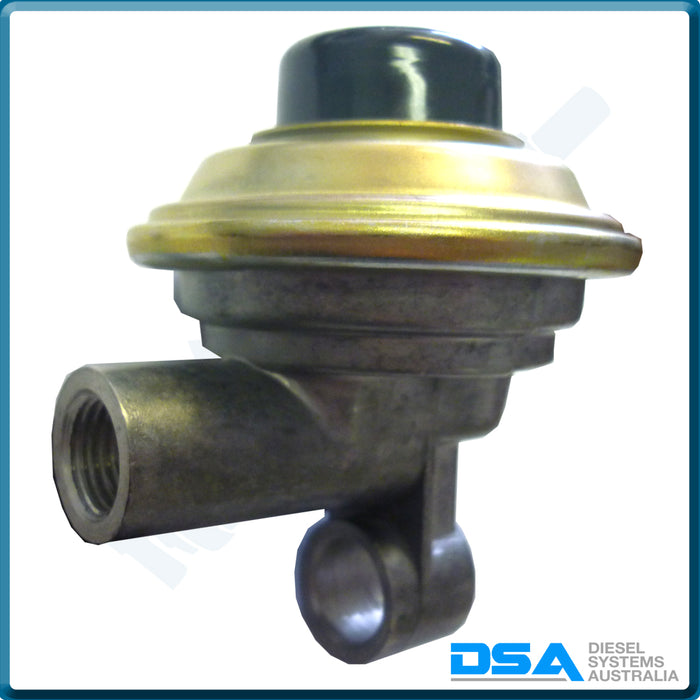

14mm Banjo to Port Remote Primer
The Diaphragm Hand Primer is a pump which can provide fuel flow in either direction by means of a reversible valve plate.  The unit keeps resriction of fuel flow under normal operating conditions to a minimum.

It can be easily fitted to the outlet of the pre-filter or inlet of the main filter.  A large operating button means the pump is simple to use, each stroke providing 12cm3 of fuel.
Flow Direction: Banjo to Port
Thread In: 14x1.5mm
Thread Out: 14x1.5mm

Applications

Primarily for Car, Light Van Applications.  Can also be used on various other Diesel and Petrol Applications

Cross References
Delphi 6223001
Franceschi AD-7023
Spaco 14127
Star 48011
